The steel pipe inner wall shot blasting line adopts hydraulic power unit imported from Germany, motor, PLC fully automatic frequency conversion control device, and adopts automatic shot blasting technology to remove surface corrosion.
- introduction
- Features
- Technical parameters
- advantages
- Application scenarios
- Inquiry now
- Related products
Steel Pipe Inner Wall Shot Blasting Line
The shot blasting machine is used to shoot the high-speed steel shot to the inner surface of the steel pipe, and the steel shot hits the rust, oxide and other impurities on the inner surface of the steel pipe with strong impact force to make it fall off, so as to achieve the purpose of rust removal. This method has high rust removal efficiency, can quickly remove the stubborn rust layer on the inner wall of the steel pipe, and at the same time of rust removal, the impact of the steel shot can also make the inner surface of the steel pipe produce a certain pressure stress, improve the fatigue strength and corrosion resistance of the steel pipe.

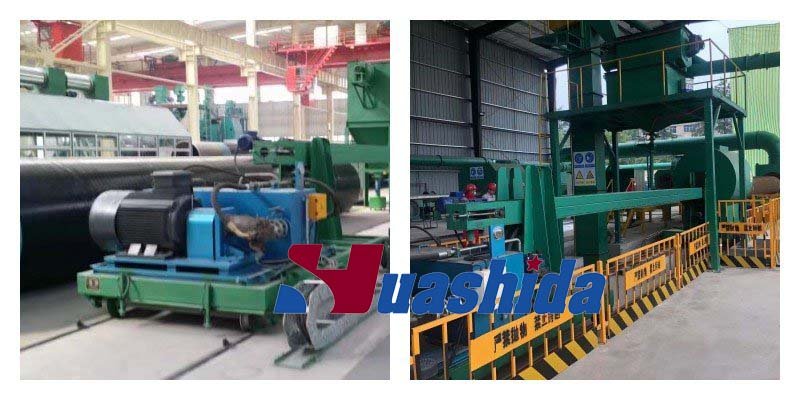

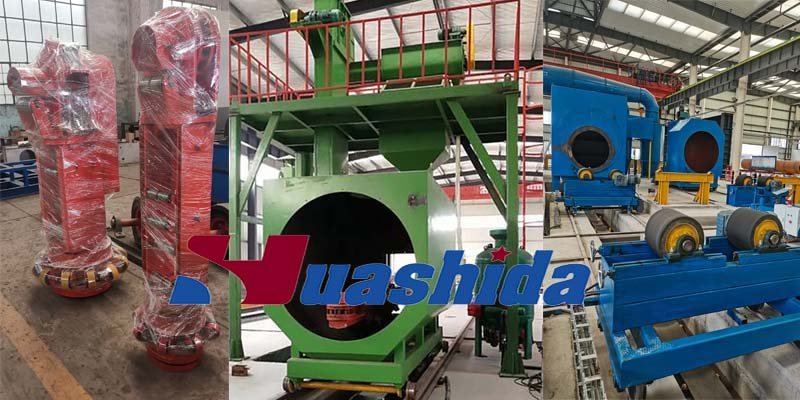

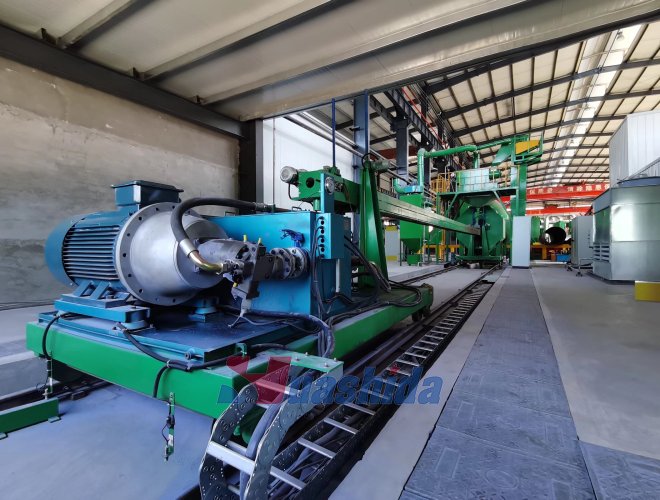

Internal rust removal hydraulic vehicle equipment Rust removal process photos

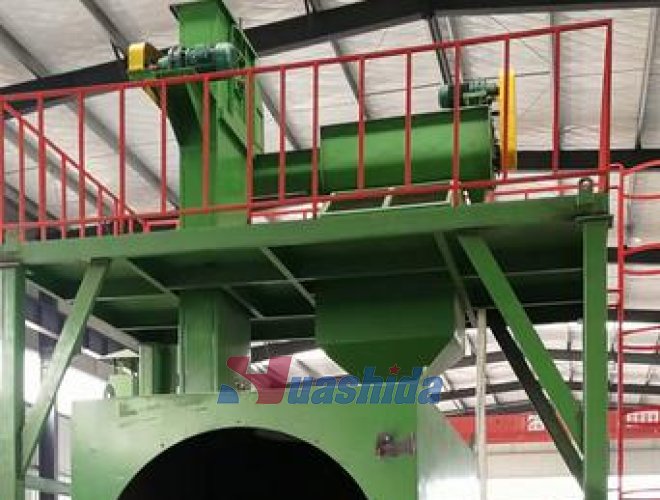

Sand Adding Lifting Dust Collector Internal rust removal transmission equipment transport vehicle

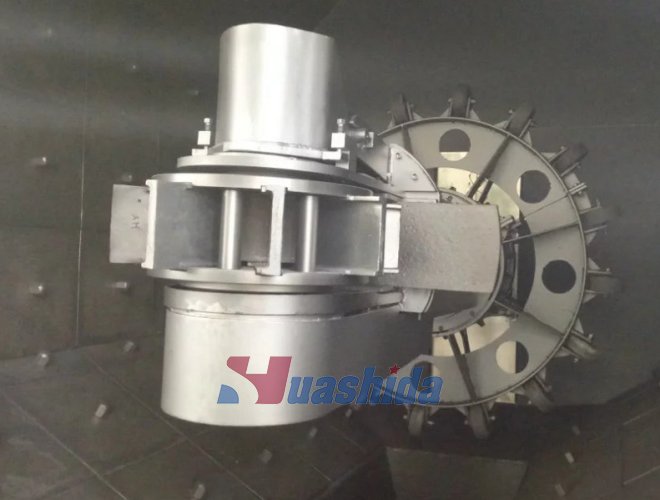

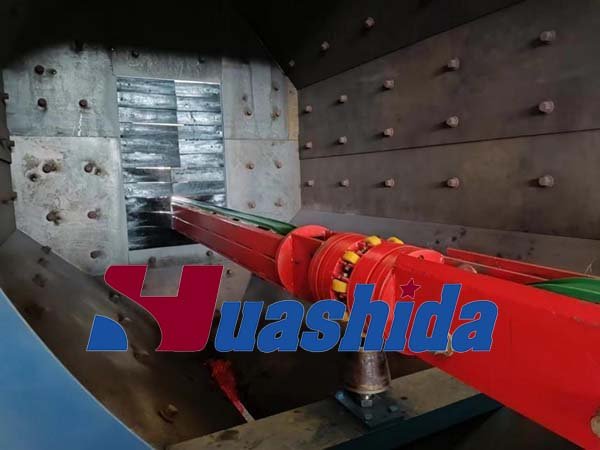

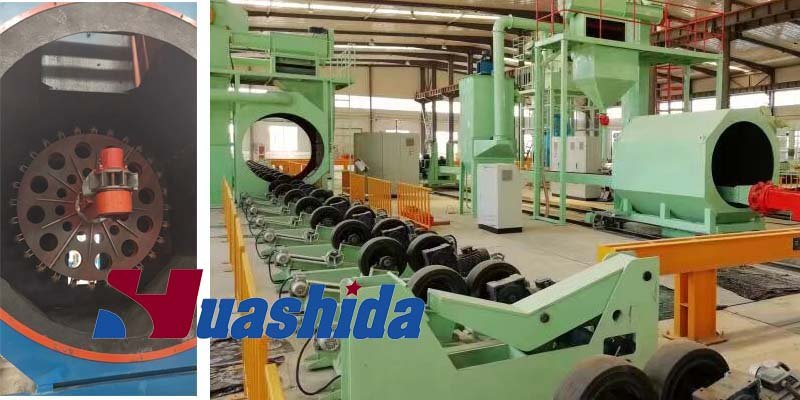

Internal support mechanism for internal rust removal pipe Internal rust removal shot blasting machine

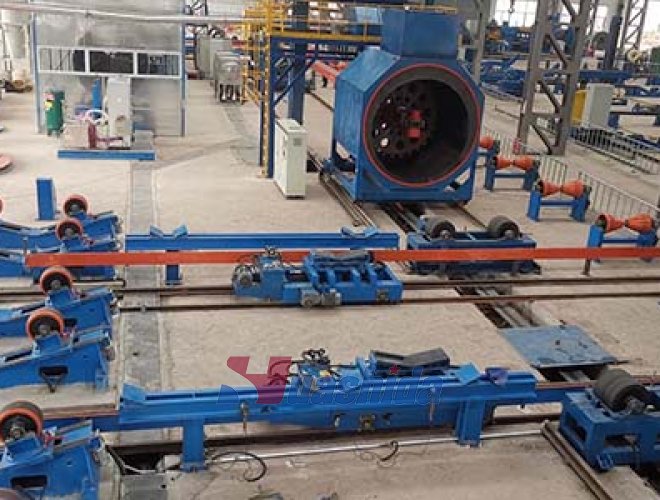

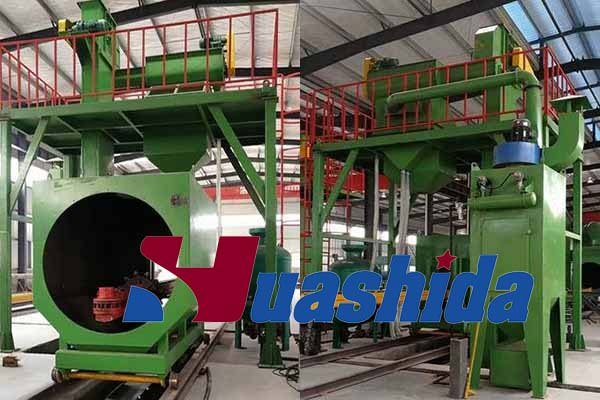

Internal rust removal shot blasting machine Internal rust removal front chamber Internal rust removal pipe turning machine

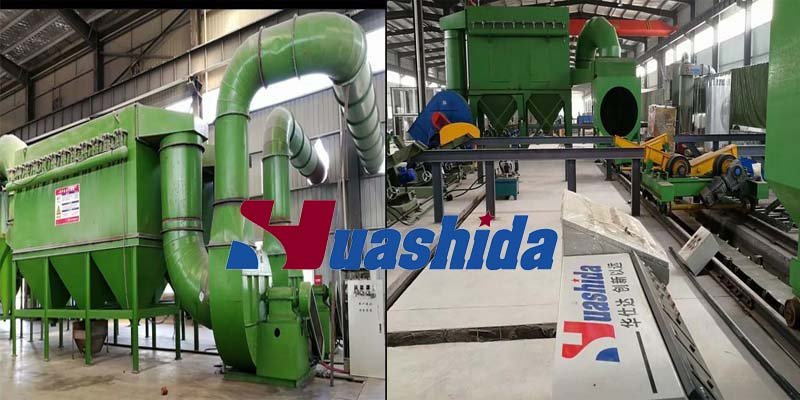

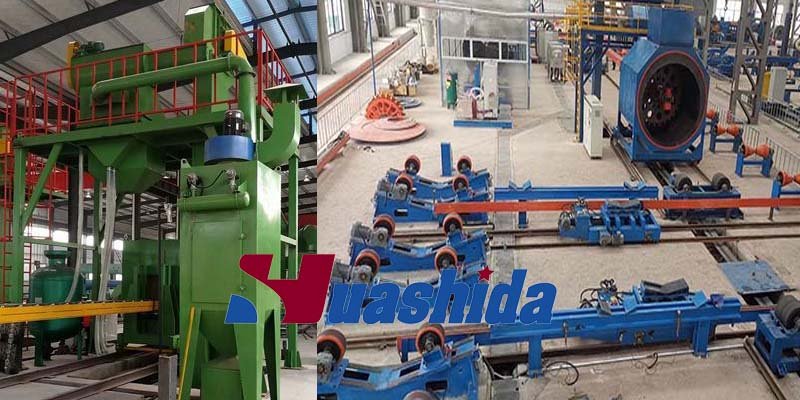

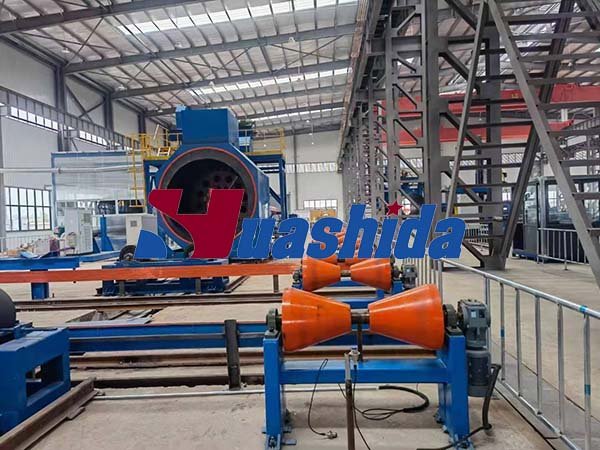

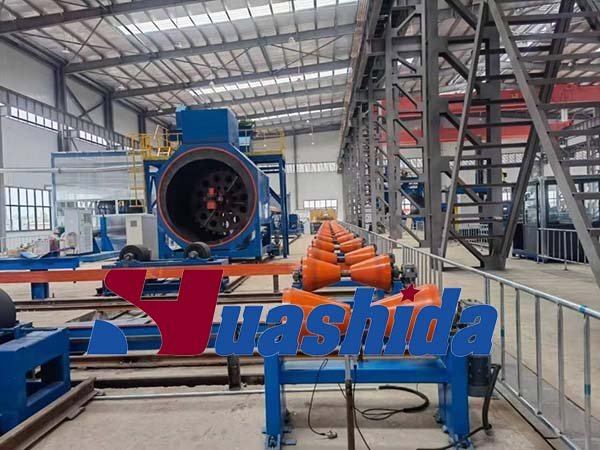

Internal shot blasting dust removal system Internal shot blasting and rust removal production line
Main equipment composition
1、Hydraulic station trolley
2、German Linde plunger pump
3、Walking engineering support chain
4、Rectangular tube conveyor belt rod
5、Internal shot blasting head
6、In-pipe support mechanism
7、Steel pipe rotation machine
8、Front protection room
9、Back protection room
10、Telescopic ventilation pipe
11、Sand return belt
12、Sand return auger
13、Hoist
14、Shot feeding stand
15、Stand dust collector
16、Induced air pipeline
17、Exhaust chimney
18、110 filter cartridge dust collector
19、110KW induced air fan
20、Internal shot blasting electrical control
 |  |

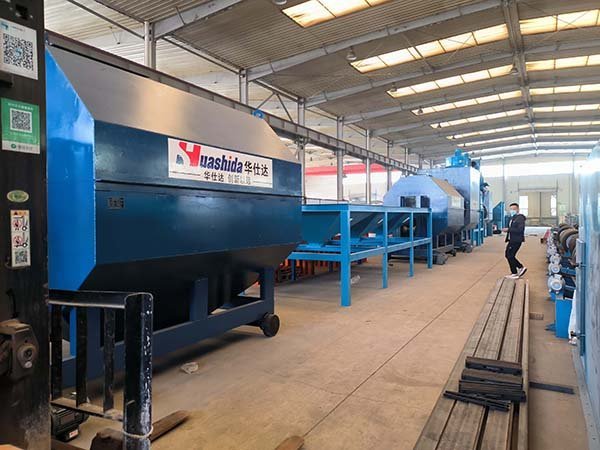

overseas delivery
 |  |
Production line parameters:
(1) Steel pipe coverage: 325mm-4200mm
(2) Processing capacity: ≥250㎡/h
(3) Cleaning level: Sa2.5
(4) Materials used: steel grit, steel shots, steel wire scetions, etc
(5) Main equipment: hydraulic device, hydraulic motor, shot blasting device, rotating device, conveying device, sealing device, dust removal system, control system and other machine.
